Kelray Outdoor Infrared Heater - ID-80 (8000W)
Reliable shipping
Flexible returns
Maximum Ideal Series output. 8,000W for demanding heating projects.
The Kelray ID-80 is the highest-output heater in the Kelray Range, delivering 8,000W from two replaceable quartz elements. Primarily a choice for commercial and suitable industrial heating projects, it combines a 1,565 mm, 316 stainless steel body with separate-element control when suitably wired. Residential applications are also possible where the installation requirements and heating plan support this level of output.
- 8,000W output from two replaceable quartz elements
- 240V supply with a rated current of 33.4A
- Approximate coverage: 16 × 16 ft (5 × 5 m) in a partially enclosed setting
- Wall, ceiling or flush mounting to suit your layout
- Limited five-year heater-body warranty; separate reflector and element terms apply
Maximum coverage in the Ideal Series, carefully planned
The ID-80 has the largest estimated heat footprint in the Ideal Series. Consider it for commercial terraces, hospitality venues and suitable industrial work areas where the available mounting height, electrical supply and clearances can accommodate its output. Industrial suitability must be assessed for the actual environment; this is not a heater for hazardous locations with exposed flammable or explosive materials.
The ID-80 shares the ID-60's body length but increases total rated power from 6,000W to 8,000W. Separate switching allows 4,000W or 8,000W operation. For a residential project, confirm that this output and mounting arrangement suit the space; the goal is well-positioned comfort, not simply selecting the most powerful heater.
Infrared heat warms people and surfaces in its path. Position the heater over or toward the area you actually use. Wind, mounting height and the openness of the space affect comfort and coverage.

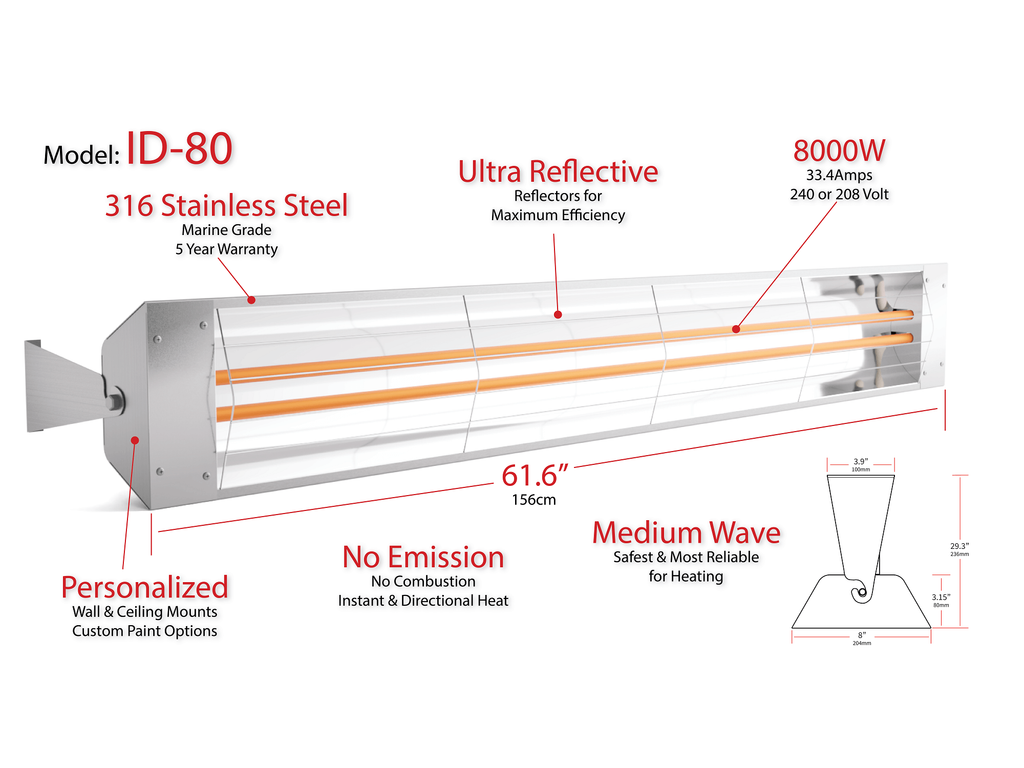

ID-80 technical specifications
| Model / series | Kelray ID-80 / Ideal Series |
|---|---|
| Heater type | Electric infrared radiant heater |
| Rated power | 8,000W (8kW) |
| Supply / current | 240V / 33.4A |
| Elements | 2 replaceable quartz elements, 4,000W each |
| Infrared wavelength | Medium-wave |
| Construction | 316 marine-grade stainless steel; polished aluminium rear reflector |
| Weather rating | IPX4 (splash resistance) |
| Heater length | 1,565 mm (approximately 61.6 in) |
| Approximate heat coverage | 5 × 5 m (approximately 16 × 16 ft), partially enclosed |
| Mounting | Angled wall, ceiling or flush mount with the required recess kit and firebox |
| Installation | Permanent hardwired installation by a qualified electrician |
| Finishes | Uncoated stainless steel, black or white |
| Limited warranty | Heater body: 5 years; rear reflector: 2 years excluding wear and tear; elements: 1 year for material defects |
208V elements are available for suitable installations. Confirm the correct element and electrical configuration with Kelray before ordering for a 208V supply.
Plan your installation
Contact us with your project use, layout, mounting heights, open sides, available electrical supply and site photos. We will help assess whether the ID-80 is appropriate and plan the number of heaters and control zones with your installer. Coverage is a planning estimate, not a guaranteed temperature or a substitute for the installation clearances.
Keep the heater's long axis horizontal. Flush mounting requires the purpose-designed recess kit and a firebox rated for at least one hour. Your electrician must follow the installation manual and local requirements for wiring, protection and clearances. Confirm mounting height with Kelray before installation.
With suitable wiring and separate switching, the two elements can provide half- or full-power operation. Discuss controls and mounting accessories when planning your system.
Support for the years ahead
Designed and manufactured in New Zealand, with final assembly, sales and support for North America from Kelray Heating Canada in British Columbia.
Replacement elements are available. Regular cleaning and correct installation are conditions of the limited warranty; physical damage is excluded. Read the full terms in the installation guide.
Downloads and advice
- Specifications, installation and warranty (PDF)
- Heater drawing and dimensions (PDF)
- Cleaning and flush-mount resources
- Replacement heating elements
Discuss an ID-80 heating plan for your project
Customers located outside Canada may be responsible for applicable duties and import taxes.
