2KW Small Outdoor Infrared Heater, Mini 2000W Plug-in Patio Heater

1/5

Kelray Outdoor Infrared Heater - I-20 (2000W)

$1,090.00

Reliable shipping

Flexible returns

Make yourself at home outdoors. 2,000W of welcoming warmth.

Morning coffee on the patio, dinner on the deck, an evening with your favourite company. The Kelray I-20 brings 2,000W of electric infrared warmth to the places you enjoy spending time. Its single-element design pairs straightforward operation with the 316 stainless steel construction and serviceable components of the Ideal Series.

2,000W output from one replaceable quartz element
240V supply with a rated current of 8.3A
Approximate coverage: 7 × 7 ft (2.25 × 2.25 m) in a partially enclosed setting
Wall, ceiling or flush mounting to suit your layout
Limited five-year heater-body warranty; separate reflector and element terms apply

A place you love. Warmth to match.

Choose the I-20 when its heat footprint and mounting requirements suit the area you want to enjoy. Its 2,000W output is a purposeful heating choice for a well-planned seating or dining zone, with the same focus on material quality and ongoing support as the rest of the Ideal Series.

The I-20 and I-25 share a 1,010 mm body length, with different power outputs and coverage estimates. The right choice comes down to your layout and exposure, rather than choosing more wattage by default. A 316 stainless steel body helps resist corrosion, and the replaceable quartz element supports years of ownership.

Infrared heat warms people and surfaces in its path. Position the heater over or toward the area you actually use. Wind, mounting height and the openness of the space affect comfort and coverage.

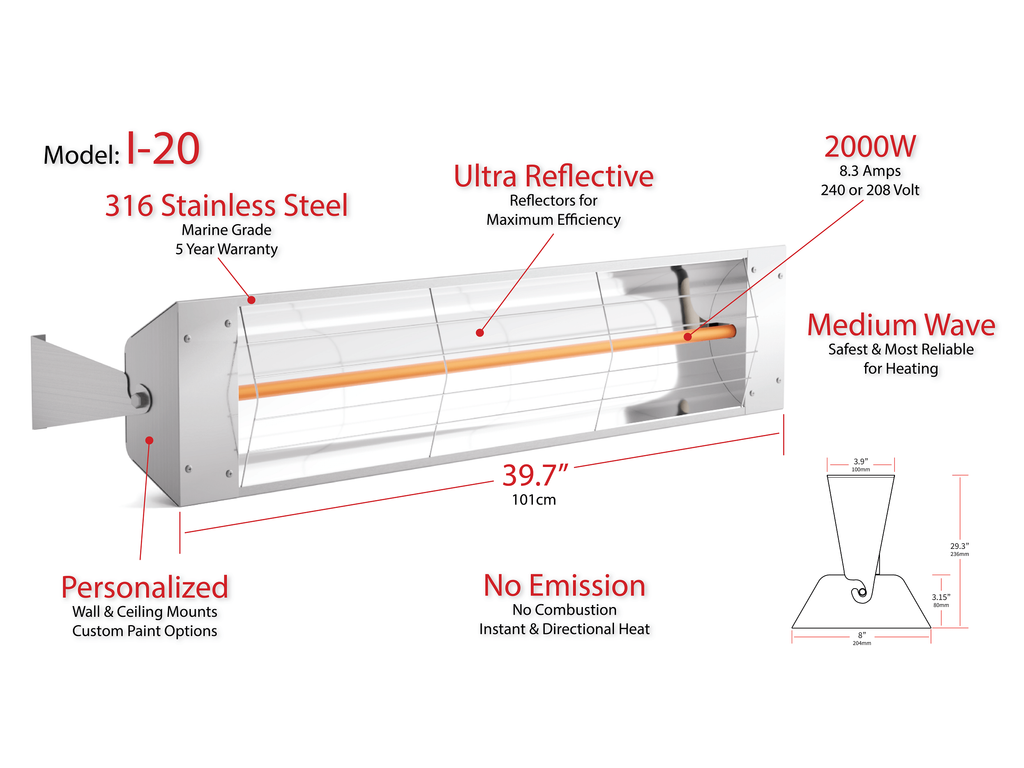

I-20 technical specifications

Kelray I-20 — 240V configuration
Model / series	Kelray I-20 / Ideal Series
Heater type	Electric infrared radiant heater
Rated power	2,000W (2kW)
Supply / current	240V / 8.3A
Elements	1 replaceable quartz element, 2,000W
Infrared wavelength	Medium-wave
Construction	316 marine-grade stainless steel; polished aluminium rear reflector
Weather rating	IPX4 (splash resistance)
Heater length	1,010 mm (approximately 39.8 in)
Approximate heat coverage	2.25 × 2.25 m (approximately 7 × 7 ft), partially enclosed
Mounting	Angled wall, ceiling or flush mount with the required recess kit and firebox
Installation	Permanent hardwired installation by a qualified electrician
Finishes	Uncoated stainless steel, black or white
Limited warranty	Heater body: 5 years; rear reflector: 2 years excluding wear and tear; elements: 1 year for material defects

208V elements are available for suitable installations. Confirm the correct element and electrical configuration with Kelray before ordering for a 208V supply.

Plan your installation

Tell us where you like to sit, dine or gather, along with the area dimensions, mounting height, number of open sides and a photo. We will help check how the I-20 fits your space. Coverage is a planning estimate, not a guaranteed temperature or a substitute for the installation clearances.

Keep the heater's long axis horizontal. Flush mounting requires the purpose-designed recess kit and a firebox rated for at least one hour. Your electrician must follow the installation manual and local requirements for wiring, protection and clearances. Confirm mounting height with Kelray before installation.

The single element is operated with a suitable on/off switch. Discuss compatible controls and mounting accessories with Kelray and your electrician when planning your system.

Support for the years ahead

Designed and manufactured in New Zealand, with final assembly, sales and support for North America from Kelray Heating Canada in British Columbia.

Replacement elements are available. Regular cleaning and correct installation are conditions of the limited warranty; physical damage is excluded. Read the full terms in the installation guide.
